Yet Another Tutorial on JOGL 1.1 (Obsolete)

Including Nehe's JOGL 1.1 Port

JOGL 1.1 is obsolete. Read "A Tutorial on JOGL 2.0".

OpenGL (Open Graphics Library) is a cross-platform, language-independent, industrial standard API for producing 3D computer graphics. Graphics cards that claim OpenGL-compliance make use of the hardware acceleration when possible to speed up the graphics rendering process. OpenGL competes with Direct3D on Microsoft Windows platform. The OpenGL mother site is at www.opengl.org.

JOGL (Java Bindings for the OpenGL) allows Java applications to access the OpenGL API for graphics programming.

This tutorial assumes that you have sufficient knowledge on OpenGL, but new to JOGL. To learn OpenGL, find a good OpenGL user's guide or references (e.g., the famous Red book "OpenGL Programming Guide" or Blue Book "OpenGL Superbible"). "Nehe" (@ http://nehe.gamedev.net) has an excellent OpenGL Tutorials . You may also read my OpenGL tutorials.

This guide is applicable and tested on JOGL 1.1.1. It is NOT applicable to JOGL 2.0, which is still in the pre-release stage, and completely different from 1.1. The JOGL mother site was at java.net (https://jogl.dev.java.net), but has been migrated to JogAMP (at http://jogamp.org). You still can access the java.net site, provided that you press the stop button before the page is re-directed to JogAmp.

Installing JOGL 1.1

Step 0: JDK - Install JDK, an IDE such as Eclipse or NetBeans or a programming text editor.

Step 1: Download - Download the JOGL 1.1 binaries from https://jogl.dev.java.net (press the stop button before it is re-directed to JogAmp). Choose "Current release build (JSR-231 1.1.1a) (June 18, 2009)". Select the binaries for your operating platform (e.g., jogl-[version]-windows-i586.zip). Also download the javadoc, source, demo and demo source.

Step 2: Install - Unzip into a directory of your choice. I shall denote the install directory as $JOGL_HOME. The libraries (jar's and dll's) needed to write JOGL programs are kept in the "lib" sub-directory.

Read "README.txt" and the JOGL User Guide ("Userguide.html") bundled together with the binaries.

Step 3a: Customize for Eclipse 3.6 - We shall create a "user library" called jogl-1.1.1, which specifies the jar-files, native codes, javadoc and sources for JOGL API. JOGL projects can then include this user library in their build path.

The procedure to create a Eclipse's user library is as follows:

  1. From "Window" menu ⇒ Preferences ⇒ Java ⇒ Build Path ⇒ User Libraries ⇒ New ⇒ In "User library name", enter "jogl-1.1.1". The "User Library" dialog appears.
  2. In "User Library" dialog ⇒ Select "jogl-1.1.1" ⇒ Add JAR... ⇒ Navigate to $JOGL_HOME/lib, and select "gluegen-rt.jar" and "jogl.jar".
  3. Expand the "jogl.jar" node, select "Native library location: (none)" ⇒ Edit... ⇒ External Folder... ⇒ select $JOGL_HOME/lib. Repeat for "gluegen-rt.jar".
  4. (Optional But Recommended) Expand the "jogl.jar" node ⇒ Select "Javadoc location: (none)" ⇒ Edit... ⇒ Javadoc in archive ⇒ In "Archive Path", "Browse" and select the downloaded JOGL API documentation zip-file ⇒ In "Path within archive", "Browse" and expand the zip-file to select the top-level path (if any) ⇒ Validate. This is needed for Eclipse to display javadoc information about classes, fields, and methods. (I recommend using a zip-file for javadoc instead of unzip-file for performance.)
  5. (Optional) You may provide the source files by editing "Source attachment: (none)". Source is needed only if you are interested to debug into the JOGL source codes.

For EACH JAVA PROJECT created that uses JOGL, right-click on the project ⇒ Build Path ⇒ Add Libraries ⇒ Select "User Library" ⇒ Check "jogl-1.1.1".

Native Libraries: Native libraries refer to the JNI binaries in the form of "dll" in the JOGL's "lib" directory, e.g., "jogl_xxx.dll", "gluegen-rt.dll". These dll's are needed at runtime.

Error in Native Libraries: If you receive an error message "SEVERE: java.lang.UnsatisfiedLinkError: no xxx in java.library.path", print out the entries in java.library.path via the following statement and check if $JOGL_HOME\lib (which contains "jogl.dll" and "gluegen-rt.dll") are included in one of the paths. "java.library.path" is supposed to mirror the PATH environment variable.

System.out.println(System.getProperty("java.library.path"));

Step 3b: Customize for NetBeans 6.9

[TODO] NetBeans OpenGL Pack.

Step 3c: Customize for JDK/Editor - You need to modify two environment variables - CLASSPATH and PATH. Read "Environment Variables For Java Applications".

To reference the jar-files, modify the CLASSPATH environment variable to include the full-path filenames of "jogl.jar" and "gluegen-rt.jar":

prompt> set classpath=.;$JOGL_HOME\lib\jogl.jar;$JOGL_HOME\lib\gluegen-rt.jar

where $JOGL_HOME denotes the JOGL installed directory. Take note that you should include the current working directory '.'.

To reference the native libraries (dll's), modified the PATH environment variable to include the full path to the JOGL's "lib" directory for accessing the native libraries ("jogl_xxx.dll" and "gluegen-rt.dll"):

prompt> set path=$JOGL_HOME\lib;......

Getting Started with JOGL 1.1

OpenGL Drawable

An OpenGL drawable is a surface or canvas for graphic rendering. JOGL provides two drawables in package javax.media.opengl:

  1. GLCanvas: modeled after java.awt.Canvas, for inclusion into AWT's Frame, or Swing's JFrame.
  2. GLJPanel: a lightweight component, modeled after javax.swing.JPanel, for inclusion into Swing's JFrame.

There are many ways to create a drawable (I shall assume that you are familiar with Java graphics programming). For examples,

// Example 1: Adding a GLCanvas into AWT's Frame
GLCanvas canvas = new GLCanvas();  // Construct a GLCanvas
Frame frame = new Frame();         // Construct a java.awt.Frame (application main window)
frame.add(canvas);                 // AWT's frame adds the GLCanvas

// Example 2: Adding a GLCanvas into Swing's JFrame via a JPanel
GLCanvas canvas = new GLCanvas();  // Construct a GLCanvas
JPanel panel = new JPanel();       // Construct a Swing's JPanel
panel.add(canvas);                 // Add GLCanvas into JPanel
JFrame frame = new JFrame();       // Construct a JFrame (application main window)
frame.setContentPane(panel);       // Add JPanel into the JFrame

// Example 3: Adding a GLJPanel into Swing's JFrame
GLJPanel canvas = new GLJPanel();  // Construct a GLJPanel
JFrame frame = new JFrame();       // Construct a JFrame (application main window)
frame.setContentPane(canvas);      // Add JPanel into the JFrame

The GLCanvas is a heavyweight AWT widget which supports hardware acceleration. It is designed as the primary widget for JOGL applications. On the other hand, GLJPanel is a swing-compatible lightweight widget, which supports hardware acceleration but is not as fast as GLCanvas. GLJPanel is intended to provide 100% swing integration when the heavyweight GLCanvas cannot be used. Both the GLCanvas and GLJPanel implement a common interface GLAutoDrawable (which in turn implements the interface GLDrawable). These interfaces define the common behaviors expected on GLCanvas and GLJPanel. so that applications can switch between them with minimal code changes.

OpenGL Graphics Context

In order to perform rendering, an so-called OpenGL rendering context is required.

[MORE]

OpenGL Event Listener

The OpenGL graphics rendering processes operates on the interface javax.media.opengl.GLEventListener . The drawable you constructed earlier (the source) adds a GLEventListener object as its GLEvent listener. The listener object provides the appropriate event handlers.

canvas.addGLEventListener(aGLEventListener);

The GLEventListener interface declares four abstract methods:

All these methods are call-back methods. When an OpenGL event is posted on the event-queue, the graphics sub-system calls back the corresponding handler method.

Animator

For animation, we need an animator to constantly drive the drawable's display() method to refresh the display. JOGL provides two animator classes: Animator and FPSAnimator (in package com.sun.opengl.util). The commonly-used FPSAnimator drives the display() method at a specified number of frame per seconds. For example,

// Construct a GLAutoDrawable (GLCanvas or GLJPanel)
GLCanvas canvas = new GLCanvas();
// Construct an FPS animator, which calls the display() of canvas at 60 frames per second, used fixed-rate scheduling
FPSAnimator animator = new FPSAnimator(canvas, 60, true);
animator.start();  // start the animator
animator.stop();   // stop the animator
animator.isAnimating();   // whether the animator is currently running

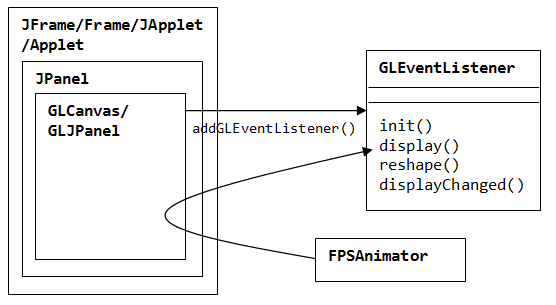

JOGL Program Templates

The template of a JOGL Swing application using GLCanvas is as follows:

import java.awt.BorderLayout;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import javax.media.opengl.GLAutoDrawable;
import javax.media.opengl.GLCanvas;
import javax.media.opengl.GLEventListener;
import javax.media.opengl.glu.GLU;
import javax.swing.JFrame;
import javax.swing.JPanel;
import com.sun.opengl.util.FPSAnimator;

public class JOGLTemplate extends JPanel implements GLEventListener {
   private static final int REFRESH_FPS = 60;    // Display refresh frames per second
   private GLU glu;             // For the GL Utility
   final FPSAnimator animator;  // Used to drive display()

   // Constructor
   public JOGLTemplate() {
      GLCanvas canvas = new GLCanvas();
      this.setLayout(new BorderLayout());
      this.add(canvas, BorderLayout.CENTER);
      canvas.addGLEventListener(this);

      // Run the animation loop using the fixed-rate Frame-per-second animator,
      // which calls back display() at this fixed-rate (FPS).
      animator = new FPSAnimator(canvas, REFRESH_FPS, true);
   }

   // Main program
   public static void main(String[] args) {
      final int WINDOW_WIDTH = 640;
      final int WINDOW_HEIGHT = 480;
      final String WINDOW_TITLE = "JOGL Program Template";

      JFrame frame = new JFrame();
      final JOGLTemplate joglMain = new JOGLTemplate();
      frame.setContentPane(joglMain);
      frame.addWindowListener(new WindowAdapter() {
         @Override
         public void windowClosing(WindowEvent e) {
            // Use a dedicate thread to run the stop() to ensure that the
            // animator stops before program exits.
            new Thread() {
               @Override
               public void run() {
                  joglMain.animator.stop(); // stop the animator loop
                  System.exit(0);
               }
            }.start();
         }
      });
      frame.setSize(WINDOW_WIDTH, WINDOW_HEIGHT);
      frame.setVisible(true);
      frame.setTitle(WINDOW_TITLE);
      joglMain.animator.start(); // start the animation loop
   }

   // Implement methods defined in GLEventListener
   @Override
   public void init(GLAutoDrawable drawable) {
      // Your OpenGL codes to perform one-time initialization tasks
      // such as setting up of lights and display lists.
   }

   @Override
   public void display(GLAutoDrawable drawable) {
      // Your OpenGL graphic rendering codes for each refresh.
   }

   @Override
   public void reshape(GLAutoDrawable drawable, int x, int y, int width, int height) {
      // Your OpenGL codes to set up the view port, projection mode and view volume.
   }

   @Override
   public void displayChanged(GLAutoDrawable drawable, boolean modeChanged, boolean deviceChanged) {
      // Not implemented in JOGL.
   }
}

Try running the above program, which will show a blank black screen.

To use GLJPanel, simple replace GLCanvas by GLJPanel.

The reason that our OpenGL drawable rests on a JPanel, as illustrated, is its flexibility and modularity. You can add the JPanel into a Swing's JFrame, AWT's Frame, Swing's JApplet, or AWT's Applet.

For example, instead of using the main() to create the JFrame, you could write a class that extends javax.swing.JFrame or java.awt.Frame:

import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import javax.swing.JFrame;

public class JOGLTemplateMain extends JFrame {
   private static final int WINDOW_WIDTH = 640;
   private static final int WINDOW_HEIGHT = 480;
   private static final String WINDOW_TITLE = "JOGL Program Template";

   // Constructor
   public JOGLTemplateMain() {
      final JOGLTemplate joglMain = new JOGLTemplate();
      this.setContentPane(joglMain);
      this.addWindowListener(new WindowAdapter() {
         @Override
         public void windowClosing(WindowEvent e) {
            // Use a dedicate thread to run the stop() to ensure that the
            // animator stops before program exits.
            new Thread() {
               @Override
               public void run() {
                  joglMain.animator.stop(); // stop the animator loop
                  System.exit(0);
               }
            }.start();
         }
      });
      this.setSize(WINDOW_WIDTH, WINDOW_HEIGHT);
      this.setTitle(WINDOW_TITLE);
      this.setVisible(true);
      joglMain.animator.start(); // start the animation loop
   }

   // main method
   public static void main(String[] args) {
      new JOGLTemplateMain();
   }
}

You can also run the above template in an applet, by subclassing javax.swing.JApplet or java.applet.Applet, as follows:

import javax.swing.JApplet;

public class JOGLTemplateApplet extends JApplet {
   JOGLTemplate joglMain;

   @Override
   public void init() {
      joglMain = new JOGLTemplate();
      this.setContentPane(joglMain);
      joglMain.animator.start();
   }

   @Override
   public void start() {
   }

   @Override
   public void stop() {
   }

   @Override
   public void destroy() {
      // Use a dedicate thread to run the stop() to ensure that the
      // animator stops before program exits.
      new Thread() {
         @Override
         public void run() {
            joglMain.animator.stop();
            System.exit(0);
         }
      }.start();
   }
}

Example 1: Rotating 2D Shapes

The following JOGL program draws a triangle.

import java.awt.BorderLayout;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import javax.media.opengl.GL;
import javax.media.opengl.GLAutoDrawable;
import javax.media.opengl.GLCanvas;
import javax.media.opengl.GLEventListener;
import javax.media.opengl.glu.GLU;
import javax.swing.JFrame;
import javax.swing.JPanel;
import com.sun.opengl.util.FPSAnimator;

public class JOGLEx1Shape2D extends JPanel implements GLEventListener {
   private static final int REFRESH_FPS = 60;    // Display refresh frames per second
   private GLU glu;             // For the GL Utility
   final FPSAnimator animator;  // Used to drive display()

   private float theta = 0;
   private float sinTheta, cosTheta;

   // Constructor
   public JOGLEx1Shape2D() {
      GLCanvas canvas = new GLCanvas();
      this.setLayout(new BorderLayout());
      this.add(canvas, BorderLayout.CENTER);
      canvas.addGLEventListener(this);

      // Run the animation loop using the fixed-rate Frame-per-second animator,
      // which calls back display() at this fixed-rate (FPS).
      animator = new FPSAnimator(canvas, REFRESH_FPS, true);
   }

   // Main program
   public static void main(String[] args) {
      final int WINDOW_WIDTH = 480;  // Width of the drawable
      final int WINDOW_HEIGHT = 480; // Height of the drawable
      final String WINDOW_TITLE = "2D Shapes";

      JFrame frame = new JFrame();
      final JOGLEx1Shape2D joglMain = new JOGLEx1Shape2D();
      frame.setContentPane(joglMain);
      frame.addWindowListener(new WindowAdapter() {
         @Override
         public void windowClosing(WindowEvent e) {
            // Use a dedicate thread to run the stop() to ensure that the
            // animator stops before program exits.
            new Thread() {
               @Override
               public void run() {
                  joglMain.animator.stop(); // stop the animator loop
                  System.exit(0);
               }
            }.start();
         }
      });
      frame.setSize(WINDOW_WIDTH, WINDOW_HEIGHT);
      frame.setTitle(WINDOW_TITLE);
      frame.setVisible(true);
      joglMain.animator.start(); // start the animation loop
   }

   // Implement methods defined in GLEventListener
   @Override
   public void init(GLAutoDrawable drawable) { }

   @Override
   public void display(GLAutoDrawable drawable) {
      render(drawable);      // Draw a color triangle
   }

   @Override
   public void reshape(GLAutoDrawable drawable, int x, int y, int width, int height) { }

   @Override
   public void displayChanged(GLAutoDrawable drawable, boolean modeChanged, boolean deviceChanged) { }

   private void render(GLAutoDrawable drawable) {
      GL gl = drawable.getGL();

      gl.glClear(GL.GL_COLOR_BUFFER_BIT);  // Clear background

      // Draw a triangle
      sinTheta = (float)Math.sin(theta);
      cosTheta = (float)Math.cos(theta);
      gl.glBegin(GL.GL_TRIANGLES);
         gl.glColor3f(1.0f, 0.0f, 0.0f);   // Red
         gl.glVertex2d(-cosTheta, -cosTheta);
         gl.glColor3f(0.0f, 1.0f, 0.0f);   // Green
         gl.glVertex2d(0.0f, cosTheta);
         gl.glColor3f(0.0f, 0.0f, 1.0f);   // Blue
         gl.glVertex2d(sinTheta, -sinTheta);
      gl.glEnd();
   }
}

To rotate the triangle, include a new method called update() that changes the vertices of the triangle after each refresh.

   @Override
   public void display(GLAutoDrawable drawable) {
      render(drawable);    // Draw a color triangle
      update();            // Modify the triangle's vertices
   }

   private void update() {
      theta += 0.01f;
   }

More on OpenGL Event Handlers

init(): called back immediately after the OpenGL context is initialized. It can be used to perform one-time initialization tasks such as setting up of lights and display lists. init() runs only once.

A typical init() for rendering 3D shapes, with depth test enabled, is as follows:

@Override
public void init(GLAutoDrawable drawable) {
   // Get the OpenGL graphics context
   GL gl = drawable.getGL();
   // GL Utilities
   glu = new GLU();
   // Enable smooth shading, which blends colors nicely, and smooths out lighting.
   gl.glShadeModel(GL.GL_SMOOTH);
   // Set background color in RGBA. Alpha: 0 (transparent) 1 (opaque)
   gl.glClearColor(0.0f, 0.0f, 0.0f, 0.0f);
   // Setup the depth buffer and enable the depth testing
   gl.glClearDepth(1.0f);          // clear z-buffer to the farthest
   gl.glEnable(GL.GL_DEPTH_TEST);  // enables depth testing
   gl.glDepthFunc(GL.GL_LEQUAL);   // the type of depth test to do
   // Do the best perspective correction
   gl.glHint(GL.GL_PERSPECTIVE_CORRECTION_HINT, GL.GL_NICEST);

   // ----- Your OpenGL initialization code here -----
   // ......
}

reshape(): called back when the drawable is first set to visible, and during the first repaint after the canvas has been resized.

A typical reshape() that sets the view port (to cover the entire screen), and the project mode is as follows:

@Override
public void reshape(GLAutoDrawable drawable, int x, int y, int width, int height) {
   // Get the OpenGL graphics context
   GL gl = drawable.getGL();

   height = (height == 0) ? 1 : height; // prevent divide by zero
   float aspect = (float)width / height;

   // Reset the current view port
   gl.glViewport(0, 0, width, height);

   // Set up the projection matrix - choose perspective view
   gl.glMatrixMode(GL.GL_PROJECTION);
   gl.glLoadIdentity(); // reset
   // Angle of view (fovy) is 45 degrees (in the up y-direction). Based on this
   // canvas's aspect ratio. Clipping z-near is 0.1f and z-near is 100.0f.
   glu.gluPerspective(45.0f, aspect, 0.1f, 100.0f); // fovy, aspect, zNear, zFar

   // Enable the model-view transform
   gl.glMatrixMode(GL.GL_MODELVIEW);
   gl.glLoadIdentity(); // reset
}

display(): called back to perform rendering by an animator.

@Override
public void display(GLAutoDrawable drawable) {
   // Get the OpenGL graphics context
   GL gl = drawable.getGL();
   // Clear the color and the depth buffers
   gl.glClear(GL.GL_COLOR_BUFFER_BIT | GL.GL_DEPTH_BUFFER_BIT);
   // Reset the view (x, y, z axes back to normal)
   gl.glLoadIdentity();

   // ----- Your OpenGL rendering code here -----
}

displayChanged(): called back when the display mode (e.g., screen resolution) has been changed. Not implemented in JOGL.

@Override
public void displayChanged(GLAutoDrawable drawable, boolean modeChanged, boolean deviceChanged) { }

Example 2: Rotating 3D Shapes

The following example show a color-pyramid and color-cube (Nehe Lesson 5).

import java.awt.BorderLayout;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import javax.media.opengl.GL;
import javax.media.opengl.GLAutoDrawable;
import javax.media.opengl.GLCanvas;
import javax.media.opengl.GLEventListener;
import javax.media.opengl.glu.GLU;
import javax.swing.JFrame;
import javax.swing.JPanel;
import com.sun.opengl.util.FPSAnimator;

public class JOGLEx2Shape3D extends JPanel implements GLEventListener {
   private static final int REFRESH_FPS = 60;    // Display refresh frames per second
   final FPSAnimator animator;  // Used to drive display()
   private GLU glu;             // For the GL Utility

   static float anglePyramid = 0;    // rotational angle in degree for pyramid
   static float angleCube = 0;       // rotational angle in degree for cube
   static float speedPyramid = 2.0f; // rotational speed for pyramid
   static float speedCube = -1.5f;   // rotational speed for cube

   // Constructor
   public JOGLEx2Shape3D() {
      GLCanvas canvas = new GLCanvas();
      this.setLayout(new BorderLayout());
      this.add(canvas, BorderLayout.CENTER);
      canvas.addGLEventListener(this);

      // Run the animation loop using the fixed-rate Frame-per-second animator,
      // which calls back display() at this fixed-rate (FPS).
      animator = new FPSAnimator(canvas, REFRESH_FPS, true);
   }

   // Main program
   public static void main(String[] args) {
      final int WINDOW_WIDTH = 320;  // Width of the drawable
      final int WINDOW_HEIGHT = 240; // Height of the drawable
      final String WINDOW_TITLE = "3D Shapes";

      JFrame frame = new JFrame();
      final JOGLEx2Shape3D joglMain = new JOGLEx2Shape3D();
      frame.setContentPane(joglMain);
      frame.addWindowListener(new WindowAdapter() {
         @Override
         public void windowClosing(WindowEvent e) {
            // Use a dedicate thread to run the stop() to ensure that the
            // animator stops before program exits.
            new Thread() {
               @Override
               public void run() {
                  joglMain.animator.stop(); // stop the animator loop
                  System.exit(0);
               }
            }.start();
         }
      });
      frame.setSize(WINDOW_WIDTH, WINDOW_HEIGHT);
      frame.setTitle(WINDOW_TITLE);
      frame.setVisible(true);
      joglMain.animator.start(); // start the animation loop
   }

   // Implement methods defined in GLEventListener
   @Override
   public void init(GLAutoDrawable drawable) {
      // Get the OpenGL graphics context
      GL gl = drawable.getGL();
      // GL Utilities
      glu = new GLU();
      // Enable smooth shading, which blends colors nicely, and smooths out lighting.
      gl.glShadeModel(GL.GL_SMOOTH);
      // Set background color in RGBA. Alpha: 0 (transparent) 1 (opaque)
      gl.glClearColor(0.0f, 0.0f, 0.0f, 0.0f);
      // Setup the depth buffer and enable the depth testing
      gl.glClearDepth(1.0f);          // clear z-buffer to the farthest
      gl.glEnable(GL.GL_DEPTH_TEST);  // enables depth testing
      gl.glDepthFunc(GL.GL_LEQUAL);   // the type of depth test to do
      // Do the best perspective correction
      gl.glHint(GL.GL_PERSPECTIVE_CORRECTION_HINT, GL.GL_NICEST);
   }

   @Override
   public void display(GLAutoDrawable drawable) {
      // Get the OpenGL graphics context
      GL gl = drawable.getGL();
      // Clear the color and the depth buffers
      gl.glClear(GL.GL_COLOR_BUFFER_BIT | GL.GL_DEPTH_BUFFER_BIT);

      // ----- Render the Pyramid -----
      gl.glLoadIdentity();                 // reset the model-view matrix
      gl.glTranslatef(-1.6f, 0.0f, -6.0f); // translate left and into the screen
      gl.glRotatef(anglePyramid, -0.2f, 1.0f, 0.0f); // rotate about the y-axis

      gl.glBegin(GL.GL_TRIANGLES); // of the pyramid

      // Font-face triangle
      gl.glColor3f(1.0f, 0.0f, 0.0f); // Red
      gl.glVertex3f(0.0f, 1.0f, 0.0f);
      gl.glColor3f(0.0f, 1.0f, 0.0f); // Green
      gl.glVertex3f(-1.0f, -1.0f, 1.0f);
      gl.glColor3f(0.0f, 0.0f, 1.0f); // Blue
      gl.glVertex3f(1.0f, -1.0f, 1.0f);

      // Right-face triangle
      gl.glColor3f(1.0f, 0.0f, 0.0f); // Red
      gl.glVertex3f(0.0f, 1.0f, 0.0f);
      gl.glColor3f(0.0f, 0.0f, 1.0f); // Blue
      gl.glVertex3f(1.0f, -1.0f, 1.0f);
      gl.glColor3f(0.0f, 1.0f, 0.0f); // Green
      gl.glVertex3f(1.0f, -1.0f, -1.0f);

      // Back-face triangle
      gl.glColor3f(1.0f, 0.0f, 0.0f); // Red
      gl.glVertex3f(0.0f, 1.0f, 0.0f);
      gl.glColor3f(0.0f, 1.0f, 0.0f); // Green
      gl.glVertex3f(1.0f, -1.0f, -1.0f);
      gl.glColor3f(0.0f, 0.0f, 1.0f); // Blue
      gl.glVertex3f(-1.0f, -1.0f, -1.0f);

      // Left-face triangle
      gl.glColor3f(1.0f, 0.0f, 0.0f); // Red
      gl.glVertex3f(0.0f, 1.0f, 0.0f);
      gl.glColor3f(0.0f, 0.0f, 1.0f); // Blue
      gl.glVertex3f(-1.0f, -1.0f, -1.0f);
      gl.glColor3f(0.0f, 1.0f, 0.0f); // Green
      gl.glVertex3f(-1.0f, -1.0f, 1.0f);

      gl.glEnd(); // of the pyramid

      // ----- Render the Color Cube -----
      gl.glLoadIdentity();                // reset the current model-view matrix
      gl.glTranslatef(1.6f, 0.0f, -7.0f); // translate right and into the screen
      gl.glRotatef(angleCube, 1.0f, 1.0f, 1.0f); // rotate about the x, y and z-axes

      gl.glBegin(GL.GL_QUADS); // of the color cube

      // Top-face
      gl.glColor3f(0.0f, 1.0f, 0.0f); // green
      gl.glVertex3f(1.0f, 1.0f, -1.0f);
      gl.glVertex3f(-1.0f, 1.0f, -1.0f);
      gl.glVertex3f(-1.0f, 1.0f, 1.0f);
      gl.glVertex3f(1.0f, 1.0f, 1.0f);

      // Bottom-face
      gl.glColor3f(1.0f, 0.5f, 0.0f); // orange
      gl.glVertex3f(1.0f, -1.0f, 1.0f);
      gl.glVertex3f(-1.0f, -1.0f, 1.0f);
      gl.glVertex3f(-1.0f, -1.0f, -1.0f);
      gl.glVertex3f(1.0f, -1.0f, -1.0f);

      // Front-face
      gl.glColor3f(1.0f, 0.0f, 0.0f); // red
      gl.glVertex3f(1.0f, 1.0f, 1.0f);
      gl.glVertex3f(-1.0f, 1.0f, 1.0f);
      gl.glVertex3f(-1.0f, -1.0f, 1.0f);
      gl.glVertex3f(1.0f, -1.0f, 1.0f);

      // Back-face
      gl.glColor3f(1.0f, 1.0f, 0.0f); // yellow
      gl.glVertex3f(1.0f, -1.0f, -1.0f);
      gl.glVertex3f(-1.0f, -1.0f, -1.0f);
      gl.glVertex3f(-1.0f, 1.0f, -1.0f);
      gl.glVertex3f(1.0f, 1.0f, -1.0f);

      // Left-face
      gl.glColor3f(0.0f, 0.0f, 1.0f); // blue
      gl.glVertex3f(-1.0f, 1.0f, 1.0f);
      gl.glVertex3f(-1.0f, 1.0f, -1.0f);
      gl.glVertex3f(-1.0f, -1.0f, -1.0f);
      gl.glVertex3f(-1.0f, -1.0f, 1.0f);

      // Right-face
      gl.glColor3f(1.0f, 0.0f, 1.0f); // magenta
      gl.glVertex3f(1.0f, 1.0f, -1.0f);
      gl.glVertex3f(1.0f, 1.0f, 1.0f);
      gl.glVertex3f(1.0f, -1.0f, 1.0f);
      gl.glVertex3f(1.0f, -1.0f, -1.0f);

      gl.glEnd(); // of the color cube

      // Update the rotational angle after each refresh.
      anglePyramid += speedPyramid;
      angleCube += speedCube;
   }

   @Override
   public void reshape(GLAutoDrawable drawable, int x, int y, int width, int height) {
      // Get the OpenGL graphics context
      GL gl = drawable.getGL();

      height = (height == 0) ? 1 : height; // prevent divide by zero
      float aspect = (float)width / height;

      // Set the current view port to cover full screen
      gl.glViewport(0, 0, width, height);

      // Set up the projection matrix - choose perspective view
      gl.glMatrixMode(GL.GL_PROJECTION);
      gl.glLoadIdentity(); // reset
      // Angle of view (fovy) is 45 degrees (in the up y-direction). Based on this
      // canvas's aspect ratio. Clipping z-near is 0.1f and z-near is 100.0f.
      glu.gluPerspective(45.0f, aspect, 0.1f, 100.0f); // fovy, aspect, zNear, zFar

      // Enable the model-view transform
      gl.glMatrixMode(GL.GL_MODELVIEW);
      gl.glLoadIdentity(); // reset
   }

   @Override
   public void displayChanged(GLAutoDrawable drawable, boolean modeChanged, boolean deviceChanged) {
      // Not implemented in JOGL.
   }
}

Try converting the program to run as an applet.

Example 2 Continue: Full-Screen Mode

Let's convert the previous example to run in full-screen mode, by writing a main class that extends JFrame. It processes the key input (ESC to quit, F1 to toggle between full-screen mode and windowed mode). No change needed for JOGLEx2Shape3D class, whose main() method is simply ignored.

import java.awt.Dimension;
import java.awt.GraphicsDevice;
import java.awt.GraphicsEnvironment;
import java.awt.event.KeyEvent;
import java.awt.event.KeyListener;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import javax.swing.JFrame;

public class JOGLEx2Shape3DFullScreenMain extends JFrame implements KeyListener {
   private static final String WINDOW_TITLE = "3D Shapes in Full Screen Mode";
   private static int windowWidth  = 640;  // size in non-full-screen mode
   private static int windowHeight = 480;

   private JOGLEx2Shape3D joglMain;
   private GraphicsDevice device;
   private boolean fullScreen = true; // full-screen or windowed mode

   // Constructor
   public JOGLEx2Shape3DFullScreenMain() {
      joglMain = new JOGLEx2Shape3D();
      this.getContentPane().add(joglMain);

      // Get the default graphic device and try full screen mode
      device = GraphicsEnvironment.getLocalGraphicsEnvironment()
            .getDefaultScreenDevice();
      if (device.isFullScreenSupported()) { // Go for full-screen mode
         this.setUndecorated(true);         // Don't show title and border
         this.setResizable(false);
         //this.setIgnoreRepaint(true);     // Ignore OS re-paint request
         device.setFullScreenWindow(this);
         fullScreen = true;
      } else {      // Windowed mode
         this.setSize(windowWidth, windowWidth);
         this.setResizable(true);
         fullScreen = false;
      }

      this.addWindowListener(new WindowAdapter() {
         @Override
         public void windowClosing(WindowEvent e) {
            // Use a dedicate thread to run the stop() to ensure that the
            // animator stops before program exits.
            new Thread() {
               @Override
               public void run() {
                  joglMain.animator.stop(); // stop the animator loop
                  System.exit(0);
               }
            }.start();
         }
      });

      // Enable keyboard input
      this.addKeyListener(this);
      this.setFocusable(true);  // To receive key event
      this.requestFocus();

      this.setTitle(WINDOW_TITLE);
      this.setVisible(true);
      joglMain.animator.start(); // start the animation loop
   }

   public static void main(String[] args) {
      new JOGLEx2Shape3DFullScreenMain();
   }

   // ------ Implement methods declared in KeyListener ------
   @Override
   public void keyPressed(KeyEvent e) {
      int keyCode = e.getKeyCode();
      switch (keyCode) {
         // F1 to toggle between full-screen and windowed modes
         case KeyEvent.VK_F1:
            if (!fullScreen) {  // Saved the current size for restoration
               Dimension screenSize = this.getSize();
               windowWidth  = (int)screenSize.getWidth();
               windowHeight = (int)screenSize.getHeight();
            }
            fullScreen = !fullScreen;
            this.setVisible(false); // Hide the display
            if (this.isDisplayable())
               this.dispose();      // For changing the decoration
            if (fullScreen) {
               if (device.isFullScreenSupported()) {
                  this.setUndecorated(true);
                  this.setResizable(false);
                  device.setFullScreenWindow(this);
               }
            } else {
               this.setUndecorated(false);  // Put the title and border back
               device.setFullScreenWindow(null); // Windowed mode
               this.setSize(windowWidth, windowHeight);
               this.setResizable(true);
            }
            this.setVisible(true);  // Show it
            break;

         // ESC to quit
         case KeyEvent.VK_ESCAPE:
            // Use a dedicate thread to run the stop() to ensure that the
            // animator stops before program exits.
            new Thread() {
               @Override
               public void run() {
                  joglMain.animator.stop(); // stop the animator loop
                  System.exit(0);
               }
            }.start();
            break;
      }
   }

   @Override
   public void keyReleased(KeyEvent e) {}

   @Override
   public void keyTyped(KeyEvent e) {}
}

Nehe's JOGL 1.1 Port

I have ported some of the Nehe's lessons into JOGL. Refer to Nehe for the problem descriptions. Take note that these codes run on JOGL 1.1, and NOT JOGL 2.0.

Download all source codes: "JOGL1Nehe.zip".

Setting Up
OpenGL Basics

I consider Lessons 2-8 as OpenGL basic lessons, that are extremely important!

OpenGL Intermediates

Deploying JOGL Applets

JDK 1.6 update 10 has greatly improved the efficiency of Java applet, and it is now feasible and practical to deploy a huge Java program as an applet.

Deploying JOGL applet is a little tricky, as it involves many jar files (jogl.jar, gluegen.jar) as well as their associate native libraries. The JNLPAppletLauncher (@ https://applet-launcher.dev.java.net) greatly simplifies the deployment process for JOGL (as well as Java3D, JOAL etc.).

A JOGL applet most likely involves a few classes (and inner classes). You should jar up all the class into a single JAR file for efficient deployment (as the files are compressed). For example, suppose that your applet includes Hello.class, Hello$1.class, Hello$1$1.class and HelloApplet.class, where HelloApplet.class contains the main program. Invoke the JDK's JAR utility (from cmd shell) as follows:

> jar cvf Hello.jar Hello.class, Hello$1.class, Hello$1$1.class  HelloApplet.class

The command-line options needed are: 'c' (create new JAR file), 'v' (verbose and print the output), 'f' (JAR filename followed, i.e., Hello.jar). Include all the relevant classes.

JOGL 1.x

To deploy a JOGL 1.x applet, use the following HTML <applet> tag:

<applet code="org.jdesktop.applet.util.JNLPAppletLauncher"
  width=640
  height=480
  archive="http://download.java.net/media/applet-launcher/applet-launcher.jar,
    http://download.java.net/media/jogl/builds/archive/jsr-231-1.x-webstart-current/gluegen-rt-natives-windows-i586.jar,
    http://download.java.net/media/jogl/builds/archive/jsr-231-1.x-webstart-current/jogl-natives-windows-i586.jar,
    http://download.java.net/media/jogl/builds/archive/jsr-231-1.x-webstart-current/jogl.jar,
    http://download.java.net/media/jogl/builds/archive/jsr-231-1.x-webstart-current/gluegen-rt.jar,
    Hello.jar">
  <param name="codebase_lookup" value="false">
  <param name="subapplet.classname" value="HelloApplet">
  <param name="subapplet.displayname" value="Test JOGL Applet">
  <param name="noddraw.check" value="true">
  <param name="progressbar" value="true">
  <param name="jnlpNumExtensions" value="1">
  <param name="jnlpExtension1"
     value="http://download.java.net/media/jogl/builds/archive/jsr-231-1.x-webstart-current/jogl.jnlp">
</applet>

where:

In the above example, I included only the "i586" native files. You probably need to include native files for the other platforms as well. Check http://download.java.net/media/jogl/builds/archive/jsr-231-1.x-webstart-current.

To deploy an applet with a single class, you can replace your JAR file with "." (current working directory), and give the applet's class name in the parameter "subapplet.classname". (You need not JAR up one single class!)

JOGL 2.x

You need to fetch a different set of JOGL binaries and native codes, as follows:

<applet code="org.jdesktop.applet.util.JNLPAppletLauncher"
      width=640
      height=400
      archive="http://download.java.net/media/applet-launcher/applet-launcher.jar,
               http://download.java.net/media/jogl/jsr-231-2.x-webstart/nativewindow.all.jar,
               http://download.java.net/media/jogl/jsr-231-2.x-webstart/jogl.all.jar,
               http://download.java.net/media/gluegen/webstart-2.x/gluegen-rt.jar,
               Hello.jar">
   <param name="codebase_lookup" value="false">
   <param name="subapplet.classname" value="HelloApplet">
   <param name="subapplet.displayname" value="Test JOGL Applet">
   <param name="noddraw.check" value="true">
   <param name="progressbar" value="true">
   <param name="jnlpNumExtensions" value="1">
   <param name="jnlpExtension1"
          value="http://download.java.net/media/jogl/jsr-231-2.x-webstart/jogl-core.jnlp">
</applet>

Read the above section for the explanation.

I believe that "nativewindow.all.jar" provides the native codes for all the major platforms.



REFERENCES & RESOURCES

Latest version tested: JDK 1.6, JOGL 1.1.1a
Last modified: October, 2010
