C++ Programming Language

Examples on Classes and Objects

Example: The Time Class Version 2 - Using References

Further to our earlier version of Time class, suppose that we wish to support cascaded operations on a Time instance, such as t.nextSecond().nextSecond().print(). We could let nextSecond() to return "this" instance by reference. The cascaded operations t.nextSecond().nextSecond().print() shall be read as ((t.nextSecond()).nextSecond()).print(). t.nextSecond() returns a reference to "this" instance, which is then used to invoke the second operation, and so on.

Time.h

class Time {
private:
   ......
public:
   Time & nextSecond();  // Return a reference to "this" instance
   ......
};

In the function prototype, we declare that the nextSecond() member function returns a reference to a Time object. The return reference can be used to invoke a member function of the class. For example, t.nextSecond().nextSecond() is interpreted as (t.nextSecond()).nextSecond(). Our previous version returns void, which cannot be used further.

Time.cpp

// Increase this instance by one second and return this instance by reference
Time & Time::nextSecond() {
   if (++second == 60) {
      second = 0;
      if (++minute == 60) {
         minute = 0;
         if (++hour == 24) {
            hour = 0;
         }
      }
   }
   return *this;  // Return this instance by reference
                  // "this" is a pointer to this instance. *this refers to this instance.
}

C++ has a special keyword this, which contains a pointer to this instance. Hence, *this refers to this instance, which is returned by reference back to the caller corresponding to the return type Time &.

TestTime.cpp

Time t1(23, 59, 58);
t1.print();     // 23:59:58
t1.nextSecond();
t1.print();     // 23:59:59
t1.nextSecond().nextSecond().print();  // 00:00:01
t1.print();     // 00:00:01

Exercise

Try modifying setHour(), setMinute() and setSecond() to support cascaded operations such as aTime.setHour(22).setMinute(29).setSecond(20).print().

Example: The Time Class Version 3 - Exception Handling

Input validation is necessary. For example, in setHour(int h), we should check that the given input h is between 0 and 23. Checking input is simple, but what to do if the input is invalid is tricky. For example, we could print an error message and abruptly terminate the program (via the exit(1) in <cstdlib>); we could print a warning message, set the hour to 0, and continue the program with a hour value may or may not be desired. Both approaches are less than ideal.

void Time::setHour(int h) {
   if (h >= 0 && h <= 23) {
      hour = h;
   } else {
      cout << "Error: Invalid hour! Hour shall be 0-23." << endl;
      exit(1);  // Terminate the program abruptly!!!
   }
}

void Time::setHour(int h) {
   if (h >= 0 && h <= 23) {
      hour = h;
   } else {
      cout << "Warning: Invalid hour! Hour shall be 0-23. Set to 0." << endl;
      hour = 0;  // Program continues with a hour value may or may not be desired?
   }
}

Instead, C++ provides an exception handling facility (in header <stdexcept>) to properly and gracefully handle exceptions. Let's modify the codes to perform input validation using the C++ exception handling facility.

Time.h

/* Header for the Time class (Time.h) */
#ifndef TIME_H
#define TIME_H

class Time {
private:
   int hour;     // 0 - 23
   int minute;   // 0 - 59
   int second;   // 0 - 59

public:
   Time(int h = 0, int m = 0, int s = 0);
   int getHour() const;
   void setHour(int h);
   int getMinute() const;
   void setMinute(int m);
   int getSecond() const;
   void setSecond(int s);
   void setTime(int h, int m, int s);
   void print() const;
};

#endif

Time.cpp

/* Implementation for the Time Class (Time.cpp) */
#include <iostream>
#include <iomanip>
#include <stdexcept>    // Needed for exception handling
#include "Time.h"
using namespace std;

Time::Time(int h, int m, int s) {
   // Call setters to perform input validation
   setHour(h);
   setMinute(m);
   setSecond(s);
}

int Time::getHour() const {
   return hour;
}

void Time::setHour(int h) {  // with input validation
   if (h >= 0 && h <= 23) {
      hour = h;
   } else {
      throw invalid_argument("Invalid hour! Hour shall be 0-23.");
            // need <stdexcept>
   }
}

int Time::getMinute() const {
   return minute;
}

void Time::setMinute(int m) {
   if (m >= 0 && m <= 59) {
      minute = m;
   } else {
      throw invalid_argument("Invalid minute! Minute shall be 0-59.");
            // need <stdexcept>
   }
}

int Time::getSecond() const {
   return second;
}

void Time::setSecond(int s) {
   if (s >= 0 && s <= 59) {
      second = s;
   } else {
      throw invalid_argument("Invalid second! Second shall be 0-59.");
            // need <stdexcept>
   }
}

void Time::setTime(int h, int m, int s) {
   // Call setters to validate inputs
   setHour(h);
   setMinute(m);
   setSecond(s);
}

void Time::print() const {
   cout << setfill('0');
   cout << setw(2) << hour << ":" << setw(2) << minute << ":"
        << setw(2) << second << endl;
}

Program Notes:

void Time::setHour(int h)
   if (h >= 0 && h <= 23) {
      hour = h;
   } else {
      throw invalid_argument("Invalid hour! Hour shall be 0-23.");
   }
}
We shall illustrate the input validation with the setHour() member function. It assigns the given h to hour if h is a valid hour. Otherwise, we use the C++ exception handling facility to throw an exception object of the type invalid_argument (defined in <stdexcept> header). This allows the caller to catch the exception and gracefully process the abnormal condition (to be illustrated later in the test driver).
Time::Time(int h, int m, int s) {
   setHour(h);
   setMinute(m);
   setSecond(s);
}
In the constructor, we invoke the setHour(), setMinute() and setSecond(), which perform input validation, instead of direct assignment. We also modified setTime() in a similar manner.

TestTime.cpp

/* Test Driver for the Time class (TestTime.cpp) */
#include <iostream>
#include <stdexcept>  // Needed for exception handling
#include "Time.h"
using namespace std;

int main() {
   //   Time t2(25, 0, 0); // program terminates abruptly
   //   t2.print();        // The rest of program will not be run

   // Graceful handling of exception
   try {
      Time t1(25, 0, 0); // Skip the remaining statements in try-clause and
                         // jump to catch-clause if an exception is thrown
      t1.print();
         // Continue to the next statement after try-catch, if there is no exception
   } catch (invalid_argument& ex) {  // need <stdexcept>
      cout << "Exception: " << ex.what() << endl;
         // Continue to the next statement after try-catch
   }
   cout << "Next statement after try-catch" << endl;
}

Program Notes:

Time t1(25, 0, 0);
If you run the above statements (un-comment lines 8 and 9) without catching the exception, the program terminates abruptly (i.e., the remaining statements will not be run) with the following error message:
```
terminate called after throwing an instance of 'std::invalid_argument'
  what():  Invalid hour! Hour shall be 0-23.
```
try {
   Time t2(25, 0, 0);
   t2.print();
} catch (invalid_argument& ex) {
   cout << "Exception: " << ex.what() << endl;
}
However, if you enclose the statements in a try-catch construct as above, when an exception occurs in one of the statement in the try-clause, the remaining statements in the try-clause are skipped, and control transferred to the catch-clause. In this case, the catch-clause catches the invalid_argument exception thrown, run the catch-body. The program then continues to the next statement after the try-catch. In this way, your program can gracefully process the abnormal condition (e.g., to close the file and resource) instead of abrupt termination.

Object Reference, Pointer and Array with Dynamic Allocation (Advanced)

We shall use the above Time class to illustrate object pointer, reference and array, with dynamic allocation.

/* Test object pointer, reference and array (TestTimeObject.cpp) */
#include <iostream>
#include "Time.h"
using namespace std;

int main() {
   // Ordinary object
   Time t1(1, 2, 3);
   t1.print();  // 01:02:03

   // Object pointer
   Time* ptrT1 = &t1;
   (*ptrT1).print(); // 01:02:03
   ptrT1->print();   // 01:02:03
      // anObjectPtr->member is the same as (*anObjectPtr).member

   // Object reference
   Time& refT1 = t1; // refT1 is an alias to t1
   refT1.print();    // 01:02:03

   // Dynamic allocation
   Time* ptrT2 = new Time(4, 5, 6); // allocate dynamically
   ptrT2->print(); // 04:05:06
   delete ptrT2;   // deallocate

   // Object Array
   Time tArray1[2];    // tArray1 is an array of Time with 2 elements
                       // Use default constructor for all elements
   tArray1[0].print();  // 00:00:00
   tArray1[1].print();  // 00:00:00

   Time tArray2[2] = {Time(7, 8, 9), Time(10)}; // Invoke constructor
   tArray2[0].print();  // 07:08:09
   tArray2[1].print();  // 10:00:00

   Time* ptrTArray3 = new Time[2]; // ptrTArray3 is a pointer to Time
            // Dynamically allocate an array of Time with 2 elements via new[]
   ptrTArray3[0].print();  // 00:00:00
   ptrTArray3[1].print();  // 00:00:00
   delete[] ptrTArray3;    // Deallocate dynamic array via delete[]

   // C++11 syntax, compile with -std=c++0x
   Time* ptrTArray4 = new Time[2] {Time(11, 12, 13), Time(14)}; // Invoke constructor
   ptrTArray4->print();        // 11:12:13
   (ptrTArray4 + 1)->print();  // 14:00:00
   delete[] ptrTArray4;
}

Program Notes:

[TODO]

Example: The Complex Class

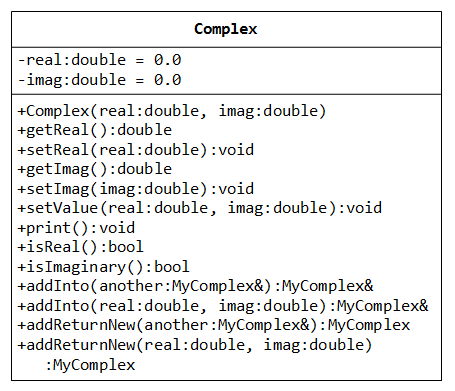

A class Complex models a complex number is designed as shown in the class diagram. It contains:

Two private data members: real and imag, with default values of 0.0.
Constructor, public getters/setters for private data members.
setValue() which sets both the real and imag.
A public member function print() which prints "(real, imag)".
bool member functions isReal() and isImaginary() which returns true if imag is 0 and real is 0, respectively.
addInto(), which adds the given complex number (by reference) into this instance, and return this instance by reference.
addReturnNew(), which adds the given complex number (by reference) and this instance, and returns a new instance of my complex. this instance shall not change.

Complex.h

/* Header for the Complex class (Complex.h) */
#ifndef COMPLEX_H
#define COMPLEX_H

class Complex {
private:
   double real;
   double imag;

public:
   Complex(double real = 0.0, double imag = 0.0);
   double getReal() const;
   void setReal(double real);
   double getImag() const;
   void setImag(double imag);
   void setValue(double real, double imag);
   void print() const;
   bool isReal() const;
   bool isImaginary() const;
   // Add the given Complex instance into this instance, and return this instance by reference
   Complex & addInto(const Complex & another);
   Complex & addInto(double real, double imag);
   // Add the given Complex instance and this instance, return the sum in a new instance by value
   Complex addReturnNew(const Complex & another) const;
   Complex addReturnNew(double real, double imag) const;
};

#endif

Explanation: [TODO]

Complex.cpp

/* Implementation for the Complex Class (Complex.cpp) */
#include <iostream>
#include "Complex.h"
using namespace std;

Complex::Complex(double real, double imag)
   : real(real), imag(imag) { }

double Complex::getReal() const {
   return real;
}

void Complex::setReal(double real) {
   this->real = real;
}

double Complex::getImag() const {
   return imag;
}

void Complex::setImag(double imag) {
   this->imag = imag;
}

void Complex::setValue(double real, double imag) {
   this->real = real;
   this->imag = imag;
}

// Print this Complex instance in the format of "x + iy"
void Complex::print() const {
   cout << '(' << real << ',' << imag << ')' << endl;
}

bool Complex::isReal() const {
   return (imag == 0);
}

bool Complex::isImaginary() const {
   return (real == 0);
}

// Add the given Complex instance into this instance and
//  return a reference of this instance
Complex & Complex::addInto(const Complex & another) {
   real += another.real;
   imag += another.imag;
   return *this;
}

Complex & Complex::addInto(double real, double imag) {
   this->real += real;
   this->imag += imag;
   return *this;
}

// Add the given Complex instance and return the sum in a new instance by value
Complex Complex::addReturnNew(const Complex & another) const {
   return Complex(real + another.real, imag + another.imag);
}

Complex Complex::addReturnNew(double real, double imag) const {
   return Complex(this->real + real, this->imag + imag);
}

Return-by-reference vs. Return-by-value

The addInto() returns this instance (which already constructed in main() and existed) by reference.
The addReturnNew() constructs a temporary (local) instance of Complex class, and passes this temporary instance as the return value. The caller receives and copy the temporary instance into its own variable, via memberwise assignment (i.e., return by value). The temporary local instance goes out-of-scope when the function returns.

TestComplex.cpp

/* Test Driver for the Complex class (TestComplex.cpp) */
#include <iostream>
#include <iomanip>
#include "Complex.h"
using namespace std;

int main() {
   Complex c1, c2(4, 5);
   c1.print();  // (0,0)
   c2.print();  // (4,5)

   c1.setValue(6, 7);
   c1.print();  // (6,7)

   c1.setReal(0);
   c1.setImag(8);
   c1.print();  // (0,8)

   cout << boolalpha;  // print true/false instead of 0/1
   cout << "Is real? " << c1.isReal() << endl;           // false
   cout << "Is Imaginary? " << c1.isImaginary() << endl; // true

   c1.addInto(c2).addInto(1, 1).print();  // (5,14)
   c1.print();  // (5,14)

   c1.addReturnNew(c2).print();   // (9,19)
   c1.print();  // (5,14) - no change in c1
   c1.addReturnNew(1, 1).print(); // (6,15)
   c1.print();  // (5,14) - no change in c1
}

Program Notes:

[TODO]

Don't Return a Reference of Local Variable

Suppose that we modify the addReturnNew() to return a reference, as follows:

Complex & Complex::addReturnNew(const Complex & another) const {
   return Complex(real + another.real, imag + another.imag);
}

You will receive this compilation error: "invalid initialization of non-const reference of type 'Complex&' from an rvalue of type 'Complex'". This is because the temporary local variable constructed inside the function will go out-of-scope when the function returns and ceases to exist. The caller's reference becomes invalid.

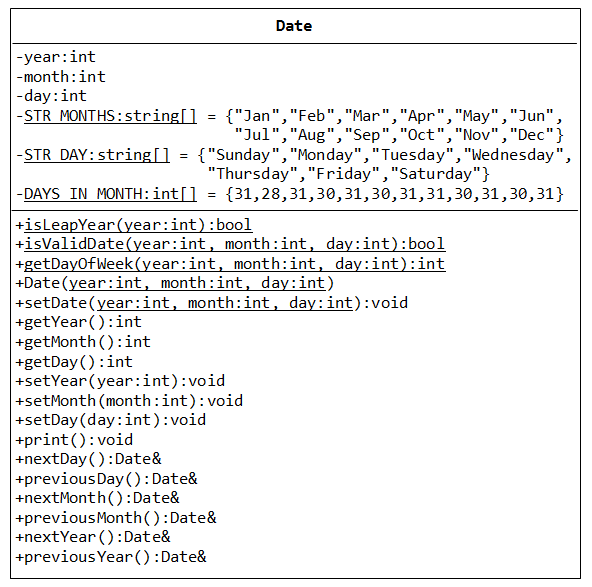

Example: The Date Class

Date.h

/* Header for the Date class (Date.h) */
#ifndef DATE_H
#define DATE_H

#include <string>
using namespace std;

class Date {
private:
   int year;    // 1753-9999
   int month;   // 1-12
   int day;     // 1-31
   const static string STR_MONTHS[];
   const static string STR_DAYS[];
   const static int DAYS_IN_MONTHS[];
   const static int YEAR_MIN = 1753;
   const static int YEAR_MAX = 9999;

public:
   static bool isLeapYear(int y);
   static bool isValidDate(int y, int m, int d);
   static int getDayOfWeek(int y, int m, int d);

   Date(int y, int m, int d);
   void setDate(int y, int m, int d);
   int getYear() const;
   int getMonth() const;
   int getDay() const;
   void setYear(int y);
   void setMonth(int m);
   void setDay(int d);
   void print() const;

   Date & nextDay();
   Date & previousDay();
   Date & nextMonth();
   Date & previousMonth();
   Date & nextYear();
   Date & previousYear();
};

#endif

Program Notes:

[TODO]

Date.cpp

/* Implementation for Date Class (Date.cpp) */
#include <iostream>
#include <stdexcept>
#include "Date.h"
using namespace std;

// Initialize static non-integer variable (must be done outside the class declaration)
const string Date::STR_MONTHS[] = {"Jan", "Feb", "Mar", "Apr", "May", "Jun",
                                   "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"};

const int Date::DAYS_IN_MONTHS[] = {31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31};

const string Date::STR_DAYS[] = {"Sunday", "Monday", "Tuesday", "Wednesday",
                                 "Thursday", "Friday", "Saturday"};

// A static function that returns true if the given year is a leap year
bool Date::isLeapYear(int year) {
   return ((year % 4 == 0 && year % 100 != 0) || (year % 400 == 0));
}

// A static function that returns true if the given y, m, d constitutes a valid date
bool Date::isValidDate(int y, int m, int d) {
   if (y >= YEAR_MIN && y <= YEAR_MAX && m >= 1 && m <= 12) {
      int lastDayOfMonth = DAYS_IN_MONTHS[m-1];
      if (m == 2 && isLeapYear(y)) {
         lastDayOfMonth = 29;
      }
      return (d >= 1 && d <= lastDayOfMonth);
   } else {
      return false;
   }
}

// A static function that returns the day of the week (0:Sun, 6:Sat) for the given date
// Wiki "Determination of the day of the week" for the algorithm
int Date::getDayOfWeek(int y, int m, int d) {
   int centuryTable[] = {4, 2, 0, 6, 4, 2, 0, 6}; // 17xx, 18xx, ...
   int MonthTable[] = {0, 3, 3, 6, 1, 4, 6, 2, 5, 0, 3, 5};
   int MonthLeapYearTable[] = {6, 2, 3, 6, 1, 4, 6, 2, 5, 0, 3, 5};

   int century = y / 100;
   int twoDigitYear = y % 100;
   int centuryTableIndex = (century - 17) % 8;
   // Date before 17xx are not valid, but needed to prevent negative index
   if (centuryTableIndex < 0) {
      centuryTableIndex += 8;
   }
   int sum = centuryTable[centuryTableIndex] + twoDigitYear + twoDigitYear / 4;
   if (isLeapYear(y)) {
      sum += MonthLeapYearTable[m-1];
   } else {
      sum += MonthTable[m-1];
   }
   sum += d;
   return sum % 7;
}

// Constructor
Date::Date(int y, int m, int d) {
   setDate(y, m, d);
}

// With Input validation
void Date::setDate(int y, int m, int d) {
   setYear(y);
   setMonth(m);
   setDay(d); // need to set the day after year and month
}

int Date::getYear() const {
   return year;
}

void Date::setYear(int y) {
   if (y >= YEAR_MIN && y <= YEAR_MAX) {
      year = y;
   } else {
      throw invalid_argument("Error: Invalid year (1753-9999)!");
   }
}

int Date::getMonth() const {
   return month;
}

void Date::setMonth(int m) {
   if (m >= 1 && m <= 12) {
      month = m;
   } else {
      throw invalid_argument("Error: Invalid month (1-12)!");
   }
}

int Date::getDay() const {
   return day;
}

// Assuming that the year and month are already set
void Date::setDay(int d) {
   int lastDayOfMonth = DAYS_IN_MONTHS[month-1];
   if (month == 2 && isLeapYear(year)) {
      lastDayOfMonth = 29;
   }
   if (d >= 1 && d <= lastDayOfMonth) {
      day = d;
   } else {
      throw invalid_argument("Error: Invalid day (1-28|29|30|31)!");
   }
}

// Print this instance in the format "xxxday, d mmm yyyy".
void Date::print() const {
   cout << STR_DAYS[getDayOfWeek(year, month, day)] << ", "
        << day << " " << STR_MONTHS[month-1] << " " << year << endl;
}

// Increment this instance to the next day and return this instance by reference
Date& Date::nextDay() {
   int lastDayOfMonth = DAYS_IN_MONTHS[month-1];
   if (month == 2 && isLeapYear(year)) {
      lastDayOfMonth = 29;
   }

   // check day against the end of month
   if (++day > lastDayOfMonth) {
      day = 1;
      if (++month > 12) {
         month = 1;
         if (++year > YEAR_MAX) {
            throw out_of_range("Error: Next day is out of range!");
         }
      }
   }
   return *this;
}

// Decrement this instance to the previous day and return this instance by reference
Date& Date::previousDay() {
   int lastDayOfMonth = DAYS_IN_MONTHS[month-1];
   if (month == 2 && isLeapYear(year)) {
      lastDayOfMonth = 29;
   }

   // check day against the end of month
   if (--day < 1) {
      day = lastDayOfMonth;
      if (--month < 1) {
         month = 12;
         if (--year < YEAR_MIN) {
            throw out_of_range("Error: Previous day is out of range!");
         }
      }
   }
   return *this;
}

// Increment this instance to the next month and return this instance by reference
Date& Date::nextMonth() {
   if (++month > 12) {
      month = 1;
      if (++year > YEAR_MAX) {
         throw out_of_range("Error: Next month is out of range!");
      }
   }
   // may need to adjust the last day of the month
   int lastDayOfMonth = DAYS_IN_MONTHS[month-1];
   if (month == 2 && isLeapYear(year)) {
      lastDayOfMonth = 29;
   }
   if (day > lastDayOfMonth) {
      day = lastDayOfMonth;
   }
   return *this;
}

// Decrement this instance to the previous month and return this instance by reference
Date& Date::previousMonth() {
   if (--month < 1) {
      month = 12;
      if (--year < YEAR_MIN) {
         throw out_of_range("Error: Previous month is out of range!");
      }
   }
   // may need to adjust the last day of the month
   int lastDayOfMonth = DAYS_IN_MONTHS[month-1];
   if (month == 2 && isLeapYear(year)) {
      lastDayOfMonth = 29;
   }
   if (day > lastDayOfMonth) {
      day = lastDayOfMonth;
   }
   return *this;
}

// Increment this instance to the next year and return this instance by reference
Date& Date::nextYear() {
   if (++year > YEAR_MAX) {
      throw out_of_range("Error: Next year is out of range!");
   }
   // may need to adjust the last day of the month for leap year (29 Feb)
   //  to non-leap year (28 Feb)
   if (month == 2 && day == 29 && !isLeapYear(year)) {
      day = 28;
   }
   return *this;
}

// Decrement this instance to the previous year and return this instance by reference
Date& Date::previousYear() {
   if (--year < YEAR_MIN) {
      throw out_of_range("Error: Previous year is out of range!");
   }
   // may need to adjust the last day of the month for leap year (29 Feb)
   //  to non-leap year (28 Feb)
   if (month == 2 && day == 29 && !isLeapYear(year)) {
      day = 28;
   }
   return *this;
}

Program Notes:

[TODO]

TestDate.cpp

/* Test Driver Program (TestDate.cpp) */
#include <iostream>
#include <stdexcept>
#include "Date.h"

int main() {
   Date d1(2012, 1, 1);
   d1.print();  // Sunday, 1 Jan 2012
   d1.nextDay().print();  // Monday, 2 Jan 2012
   d1.print();  // Monday, 2 Jan 2012

   d1.setDate(2012, 1, 31);
   d1.print();  // Tuesday, 31 Jan 2012
   d1.nextDay().print();  // Wednesday, 1 Feb 2012

   d1.setDate(2012, 2, 28);
   d1.print();  // Tuesday, 28 Feb 2012
   d1.nextDay().print();  // Wednesday, 29 Feb 2012

   d1.setDate(2012, 12, 31);
   d1.print();  // Monday, 31 Dec 2012
   d1.nextDay().print();  // Tuesday, 1 Jan 2013

//   Date d2(2011, 2, 29);  // abrupt termination!
//   d2.print();

   try {  // graceful handling of exception
      Date d3(2011, 2, 29);
      d3.print();
   } catch (invalid_argument &ex) {
      cout << ex.what() << endl;  // Error: Invalid day (1-28|29|30|31)!
   }
   cout << "Next Statement after try-catch" << endl;

   try {  // graceful handling of exception
      Date d4(9999, 12, 30);
      d4.nextDay().print(); // Friday, 31 Dec 9999
      d4.nextDay();
      d4.print();
   } catch (out_of_range &ex) {
      cout << ex.what() << endl;  // Error: Next day is outside the valid range!
   }

   Date d5(2012, 1, 1);
   d5.previousDay().print();  // Saturday, 31 Dec 2011

   Date d6(2012, 3, 31);
   d6.nextMonth().print();  // Monday, 30 Apr 2012

   Date d7(2012, 3, 31);
   d7.previousMonth().print();  // Wednesday, 29 Feb 2012

   Date d8(2012, 2, 29);
   d8.nextYear().print(); // Thursday, 28 Feb 2013

   Date d9(2012, 2, 29);
   d9.previousYear().print();  // Monday, 28 Feb 2011
}

Program Notes:

[TODO]

Example: The Point and Polyline Class

[TODO] Using STL vector<Point>..

Link to "C++ Language References & Resources"

Latest version tested: GCC g++ 4.6.2
Last modified: May, 2013
